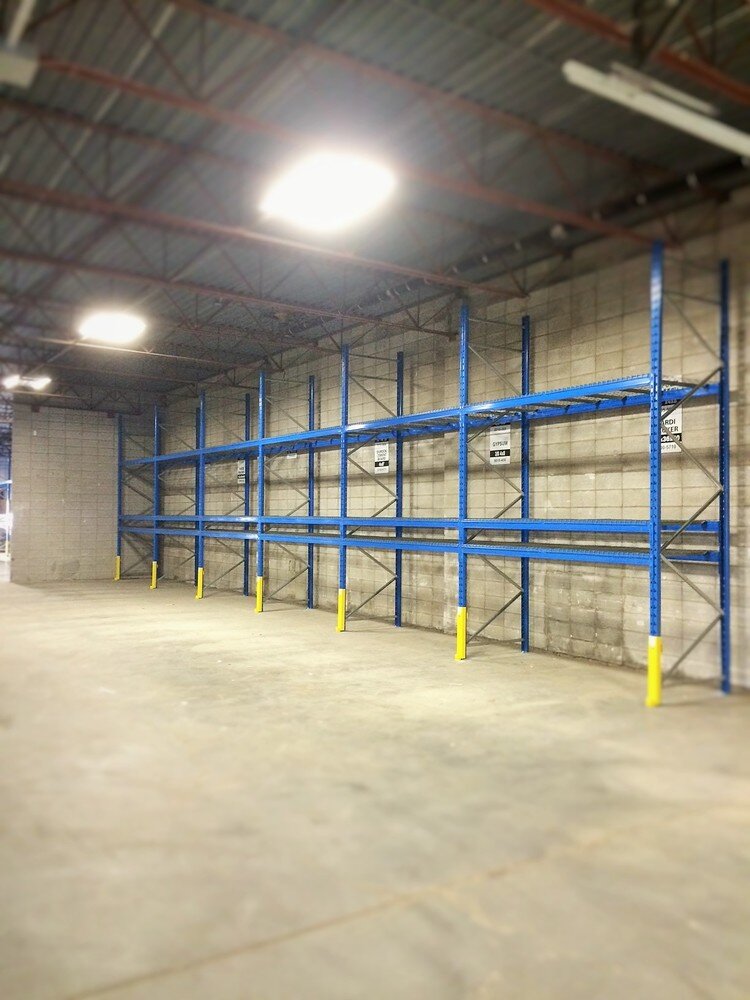

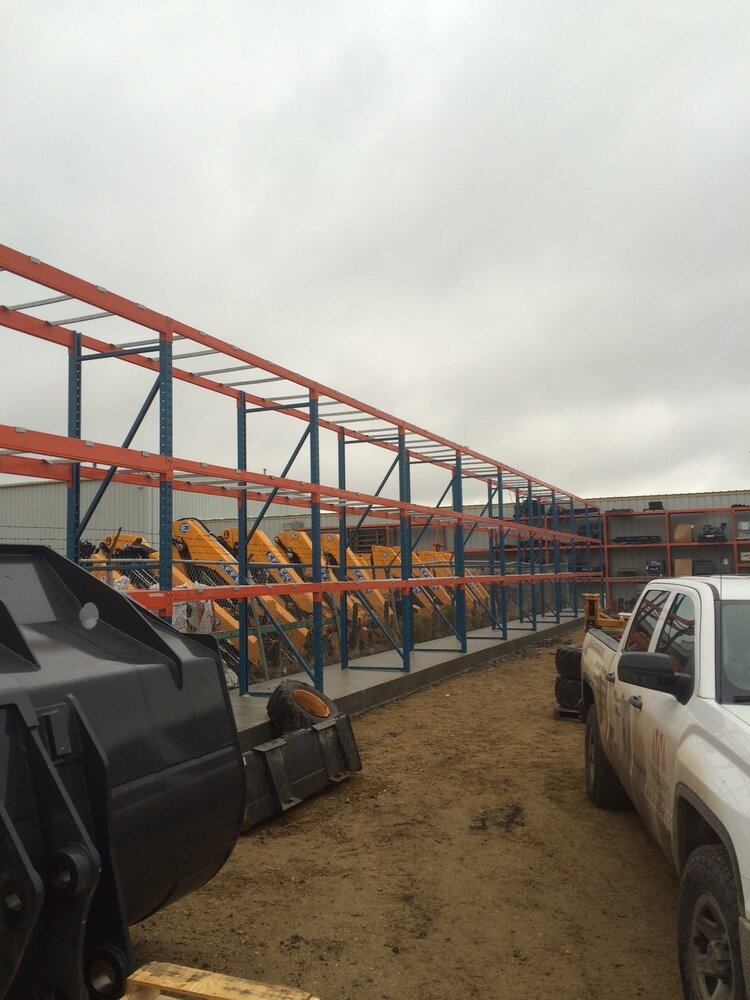

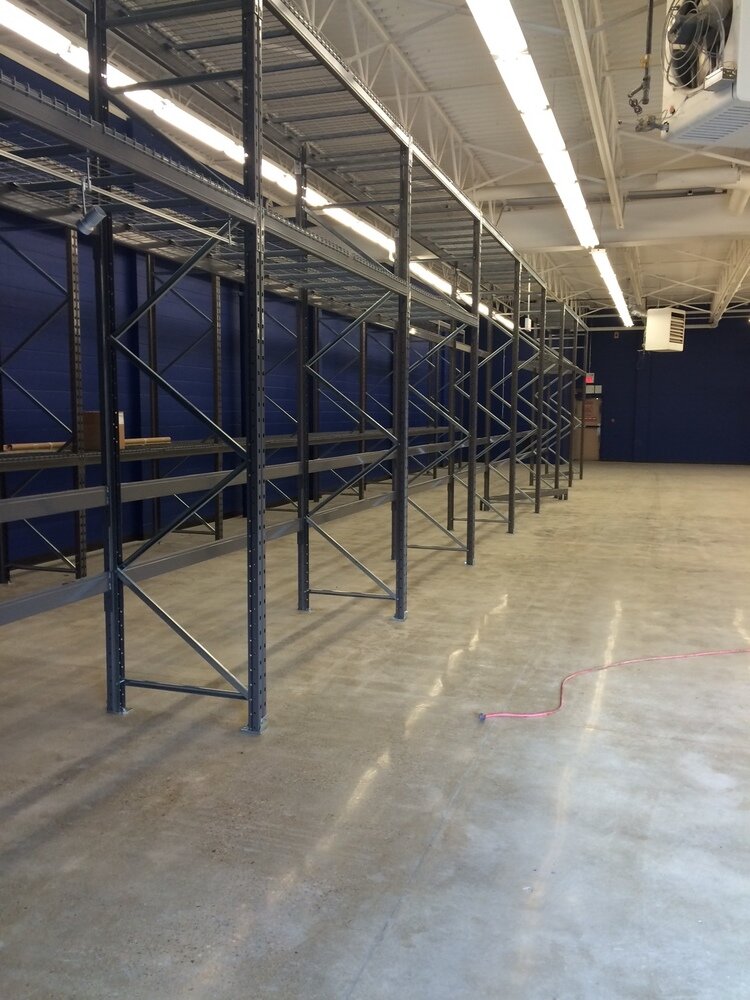

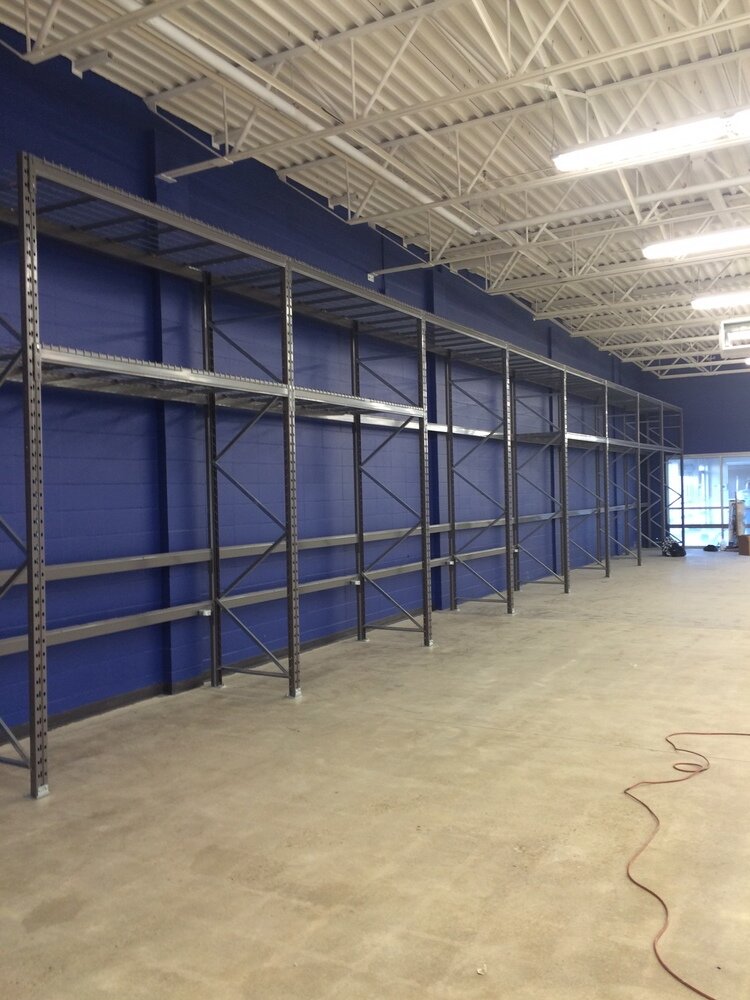

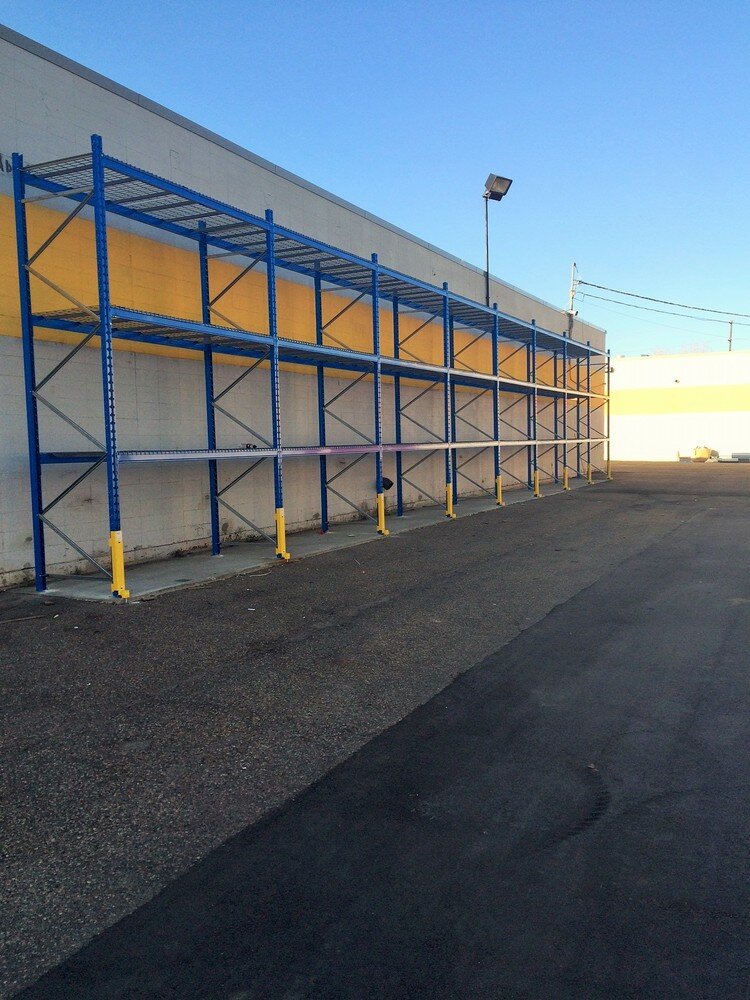

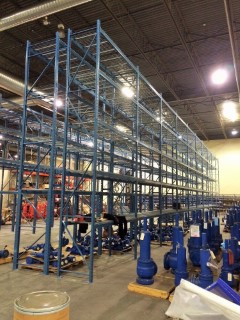

SELECTIVE RACKING
PALLET RACKING COMPONENTS:

1. FRAMES
Standard sizes are available in 24" to 72" depths and up to 32' high. Special sizes are available and Industrial Storage Systems will design and manufacture them to suit any customer requirement. We provide frames in two styles, welded, and bolted. Welded frames are the most common in North America, they are painted using a powder coat process and are available in a range of steel thicknesses. Bolted frames are the most flexible frame option. They can be shipped assembled or knocked down. Individual damaged components can be field replaced without having to replace the entire frame.

2. PALLET RACKING GUARDS
Coming in a wide variety of duties and sizes, Industrial Storage Systems has a full line of racking guards for any warehouse.

3. BEAMS
Available in roll formed box, welded step and roll formed step styles. Standard beam capacities range from 1,000 lbs. to 12,000 lbs. per pair and are available in lengths ranging from 24" to 192" Box beams are typically used to store conventional pallets and work best using accessories such as safety bars or wire mesh decks. Step beams allow for drop in decks, shelves and many additional accessories designed for product stacking and hand pick applications.

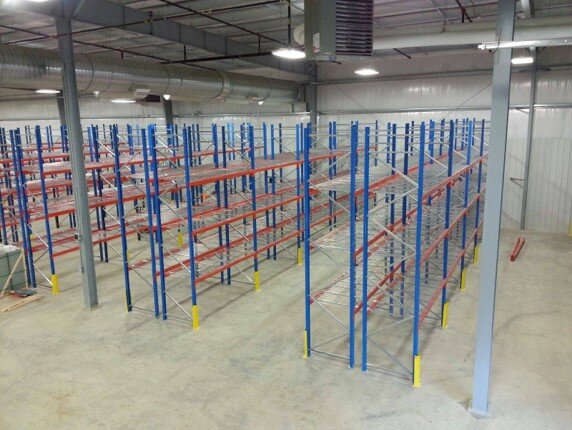

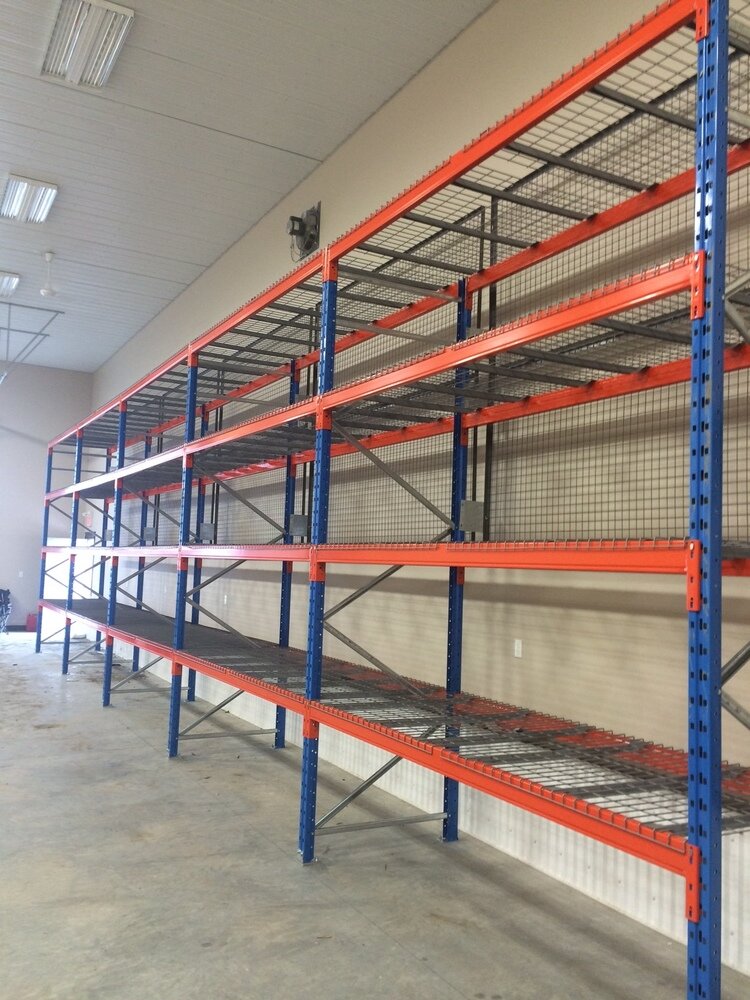

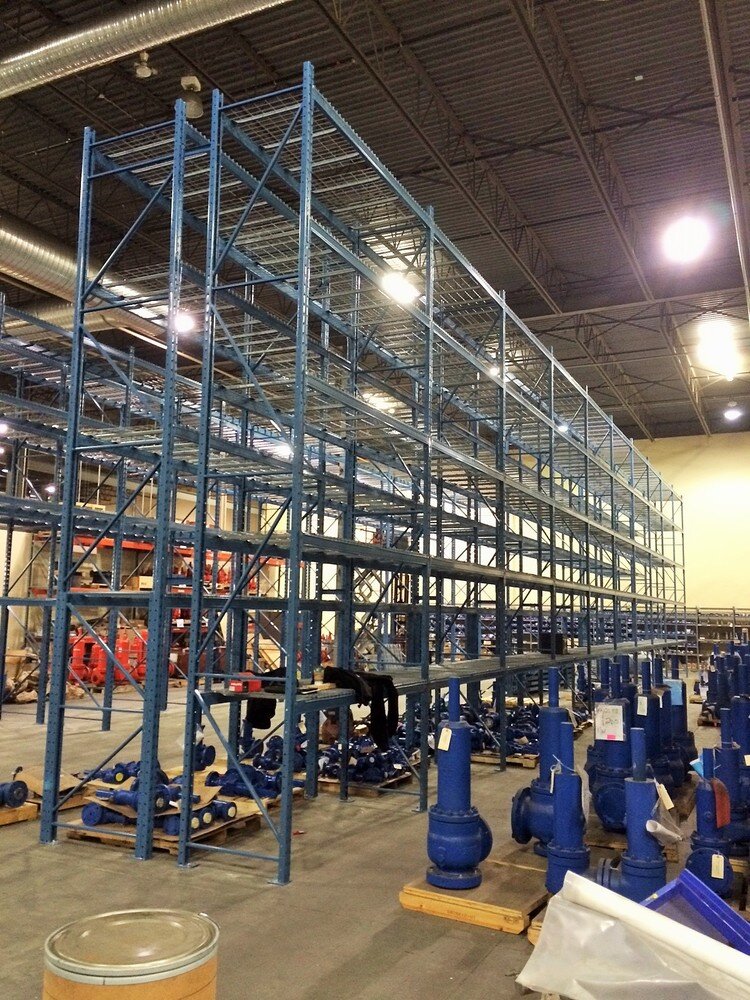

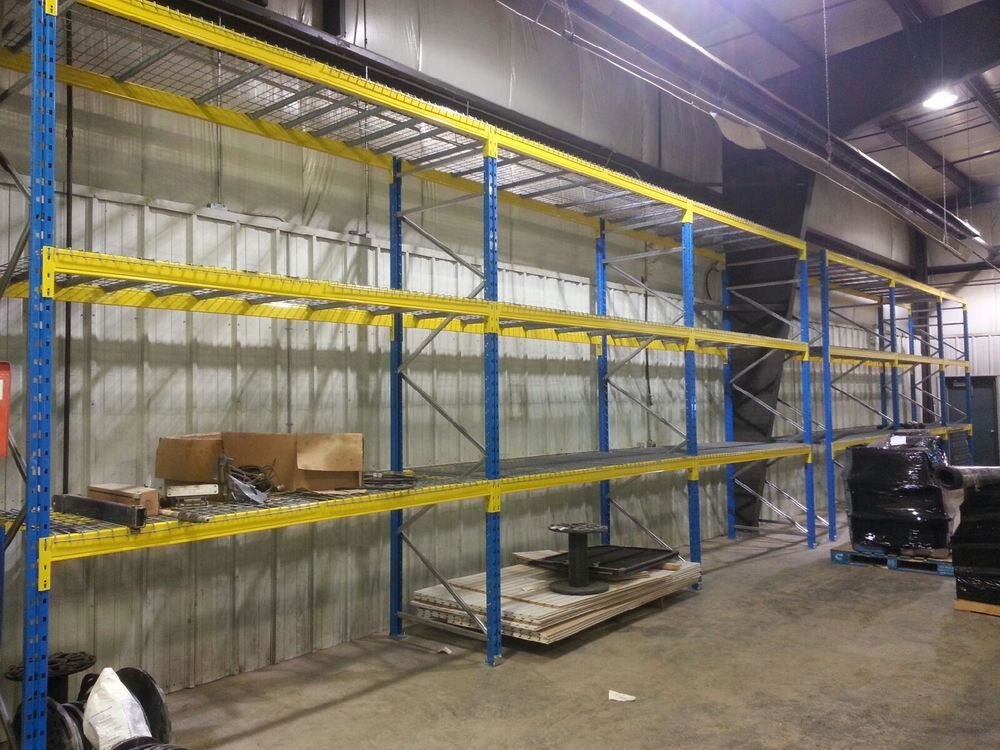

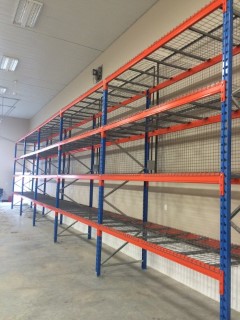

4. DROP-IN DECKS & MESH DECKS
Drop-in decks and mesh decks provide a continuous surface on pallet rack beam levels. These are a safety feature designed to stop injuries due to falling product from a pallet. It can also be used as a shelf for small packages or individual items.

5 & 6. PALLET RACKING ACCESSORIES
